| 브랜드 이름: | DLX |
| 모델 번호: | 니티놀 와이어 |
| 모크: | 5kg |
| 공급 능력: | 한 달에 500 톤 |
| Density | 6.45 g/cm³ |
| Shape | Wire |
| Corrosion Resistance | High |
| Thermal Conductivity | 11.7 W/m·K |
| Sample | Support |
| Product Surface | Bright |
| Origin | China |
| Young's Modulus | 55-75 GPa |
| Product Composition | Nickel Titanium |
| Customization | Support |
| Electrical Conductivity | Low |
| Status | Straight |

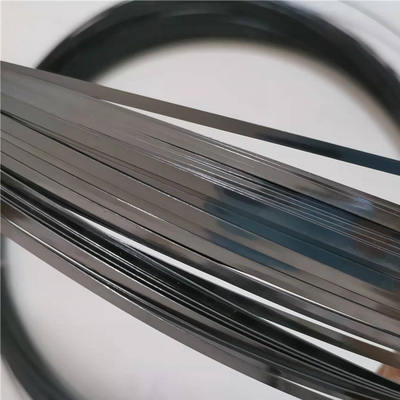

| Product Shape | Strip/Ribbon |
| Service | OEM/ODM |
| Shape Memory Temperature | 50-100°C |
| Grade | Chemical Composition | Transformation Temperature (Af) Range | Tensile Strength (MPa) | Elongation (%) | Main Applications |
|---|---|---|---|---|---|
| NiTi-01M (Superelastic) | Ni: 54.5-57.0%, Ti: Balance | -25~35°C | 800-1100 | 10-20 | Medical orthodontic wires, root canal files, vascular stents |
| NiTi-02 | Ni: 55.0-56.5%, Ti: Balance | 0~80°C | 700-1000 | 8-15 | Shape memory alloys, temperature control devices |
| CuNiTi (Ternary Alloy) | Ni: 54.0-56.0%, Cu: 0.5-2.0%, Ti: Balance | -25~35°C | 850-1200 | 12-25 | Medical guidewires, sutures, staplers |
| NiTiFe | Ni: 54.5-57.0%, Fe: 0.1-2.0%, Ti: Balance | -50~20°C | 900-1300 | 10-18 | Low-temperature applications, aerospace components |
| NiTiCr | Ni: 54.5-57.0%, Cr: 0.1-0.5%, Ti: Balance | -20~40°C | 1000-1400 | 8-15 | High-strength medical devices, bone fixation devices |
